AirBlade Tweeter
AirBlade is the world’s only high-frequency loudspeaker with constant directivity. In the form of AirBlade HYPE add-on, it is used to augment even the most opulent high-end audio systems to compensate for their directional behaviour and to enhance their sonic properties.
Sold as a matched pair.
AirBlade is the world’s only high-frequency loudspeaker with constant directivity. In the form of AirBlade HYPE add-on, it is used to augment even the most opulent high-end audio systems to compensate for their directional behaviour and to enhance their sonic properties.
Sold as a matched pair.
AirBlade is the world’s only high-frequency loudspeaker with constant directivity. In the form of AirBlade HYPE add-on, it is used to augment even the most opulent high-end audio systems to compensate for their directional behaviour and to enhance their sonic properties.
Sold as a matched pair.
About AirBlade HYPE
The AirBlade transducer is a technological masterpiece consisting of over 150 precision-engineered parts. Its powerful magnet structure drives a diaphragm of merely 3 grams that covers an area of 19200mm², equivalent to 37 x 1" tweeters!
Continuous directivity
The AirBlade membrane is based on a modified Air Motion Transformer principle where a foil submerged in a strong magnetic film is put in motion in a push-pull fashion. This modified AMT features curved membrane layers that enable the transducer to maintain identical Frequency Response on-axis and off-axis over a 180° angle, minimising the sweet-spot issue and delivering a true wide-stage sound reproduction.

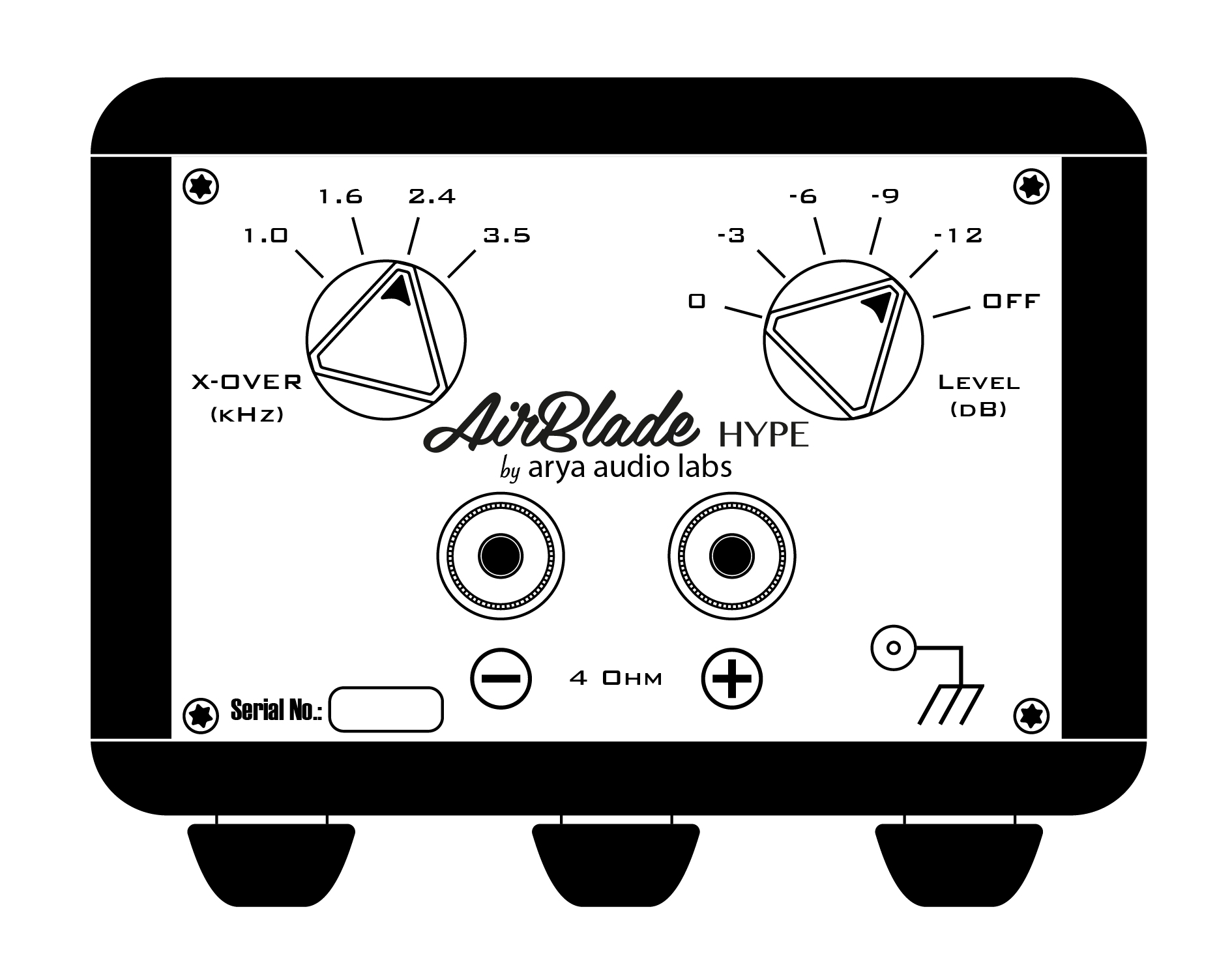

Built-in adjustable crossover
The AirBlade HYPE cabinet houses an adjustable crossover network with high quality Elma rotary switches to enable seamless integration with a wide range of loudspeakers. 4 crossover frequencies and 5 levels allow effortless tuning of the add-on unit depending on the efficiency and timbre of the main speaker.
AirBlade add-on comes in two versions:
AirBlade HYPE v2
- crossover based on Mundorf MCap EVO Aluminium Oil capacitors
- AEC Gold plated Tellerium Copper binding posts
AirBlade HYPE Signature Edition
- crossover based on Mundorf MCap EVO SilverGold Oil capacitors
- WBT Silver Nextgen binding posts
Technical data
Crossover: 1.0kHz, 1.6kHz, 2.4kHz and 3.5kHz (1st order)
Sensitivity: ca. 96dB (adjustable by up to -12dB in 3dB steps)
Impedance: 4 Ohm (linear, purely resistive)

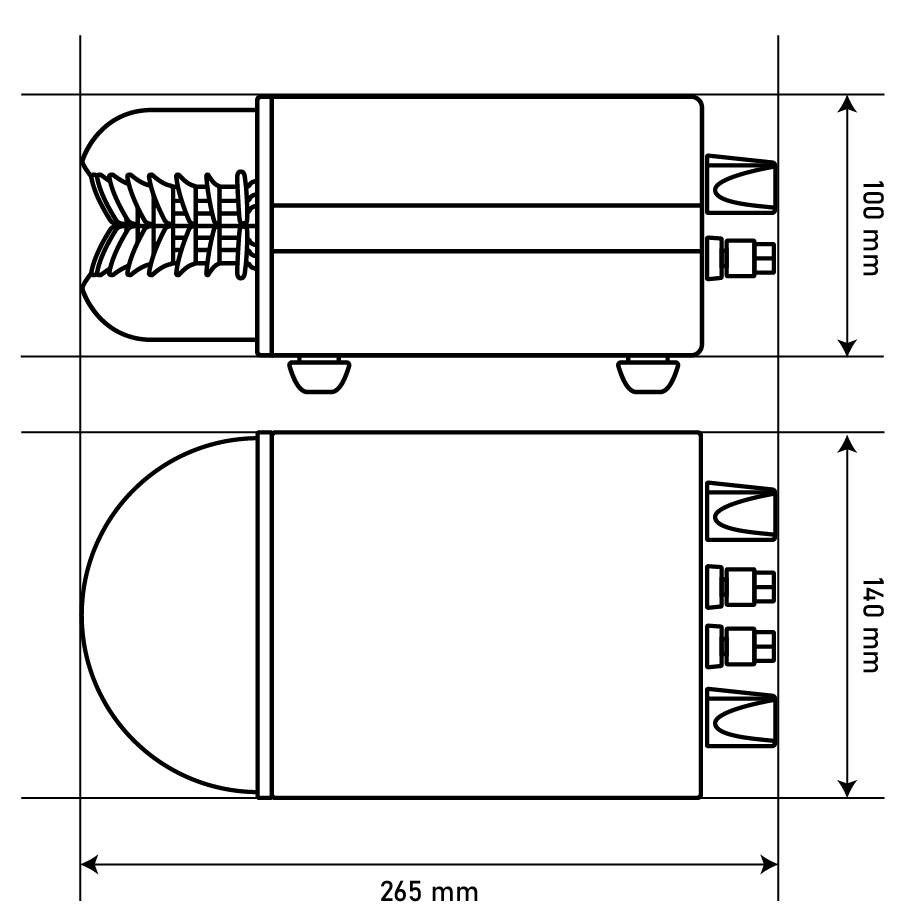

Dimensions:
Width: 140mm
Height: 115mm (including RevOpod Mini feet)
Depth: 240mm (265mm including binding posts)

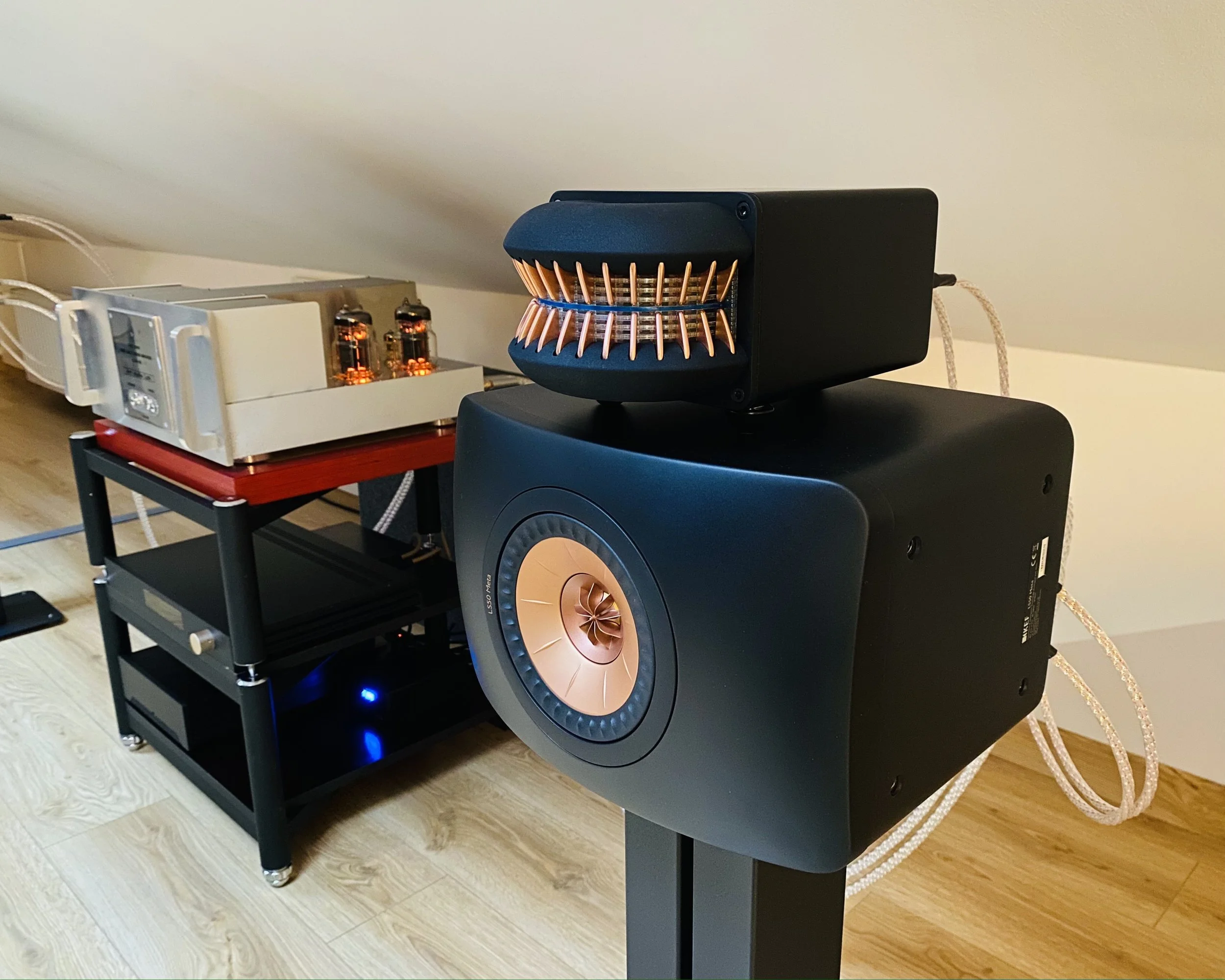

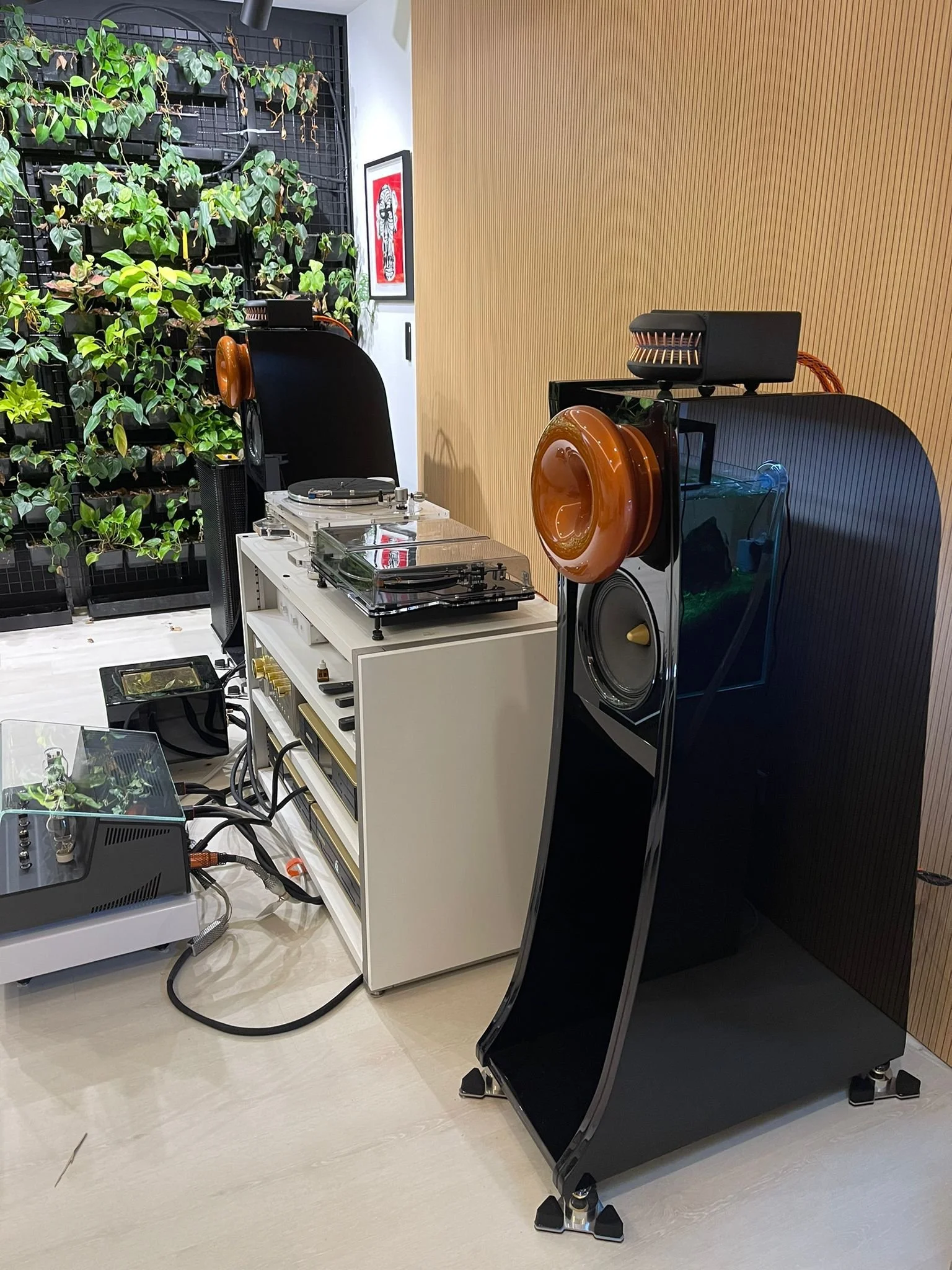

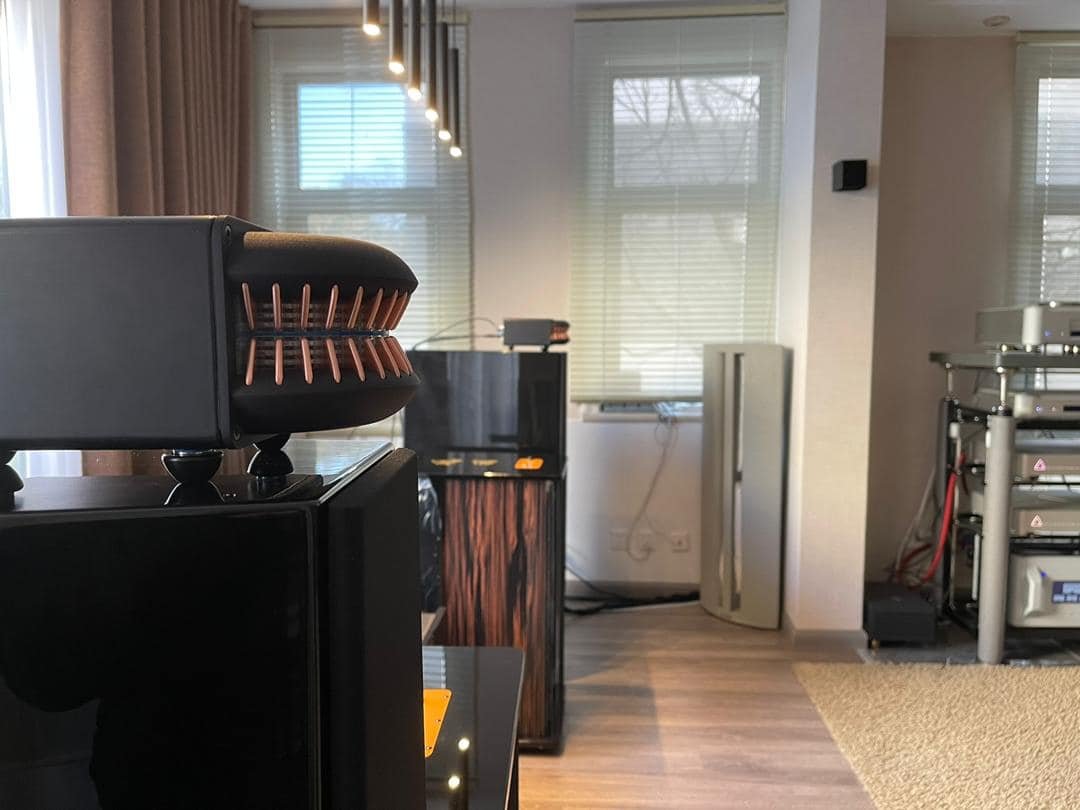

Customer Setups
Dimensions and weight
Unit Weight: 5.5kg per unit
Box dimensions: 34 x 24 x 18cm
Footers: 3x RevOpod Mini included
